DCTANK AW1

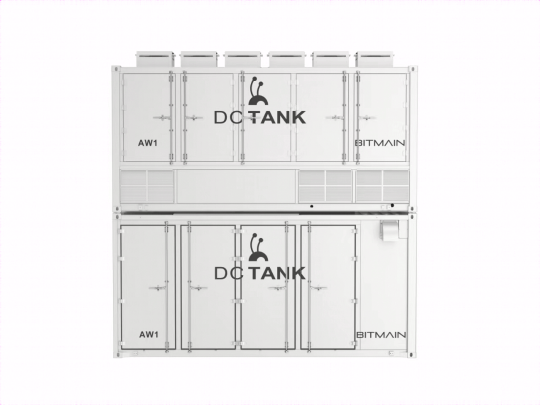

DCTANK AW1 – Air-Cooled Mining Container

The DCTANK AW1 is an enterprise-grade air-cooled mining container engineered for large-scale Bitcoin mining deployments. With 376U of server capacity across 8 cabinets and a 120 kW IT load, it delivers a complete, CCS-certified containerized infrastructure solution — ready for institutional and industrial mining operations worldwide.

Container Specifications

• Model: DCTANK AW1
• Dimensions: 6,058 × 2,438 × 2,896 mm
• Server Capacity: 376U total (8 cabinets × 47U each)
• Total IT Load: 120 kW
• Single Cabinet Power Density: 15 kW
• Input Voltage: 400V ±5%, 50/60Hz
• Main Switch: 250A × 2
• Rated Current: ≤405A
• Container Certification: CCS
• Safety Certifications: NFPA 79:2024, UL 508A:2018, CSA C22.2 No.301:23, ANSI/ISO 12100:2012, EN ISO 12100:2010, EN 60204-1:2018
• Shipping Weight: 4.6T

Cooling Tower Specifications

• Dimensions: 6,058 × 2,438 × 2,896 mm
• Rated Cooling Capacity: 120 kW
• PUE @ 25°C: 1.11
• Motor Voltage: 400V ±5%, 50/60Hz
• Supply Air Temperature: 25°C
• Return Air Temperature: 38°C
• Noise Level @ 25°C, 15m: 75 dBA
• Operating Temperature: -40 to +45°C
• Humidity: 5–95% RH
• Shipping Weight: 5.8T | Operating Weight: 7.8T
• Container Certification: CCS

Why Choose the DCTANK AW1

• 376U capacity — one of the highest-density air-cooled mining containers available
• Multi-standard safety certified (NFPA, UL, CSA, ISO, EN) for global compliance
• CCS-certified container for international shipping and deployment
• Complete turnkey infrastructure — power distribution, cooling, and monitoring included
