Canaan Avalon A1566HA 2U

Canaan Avalon A1566HA 2U

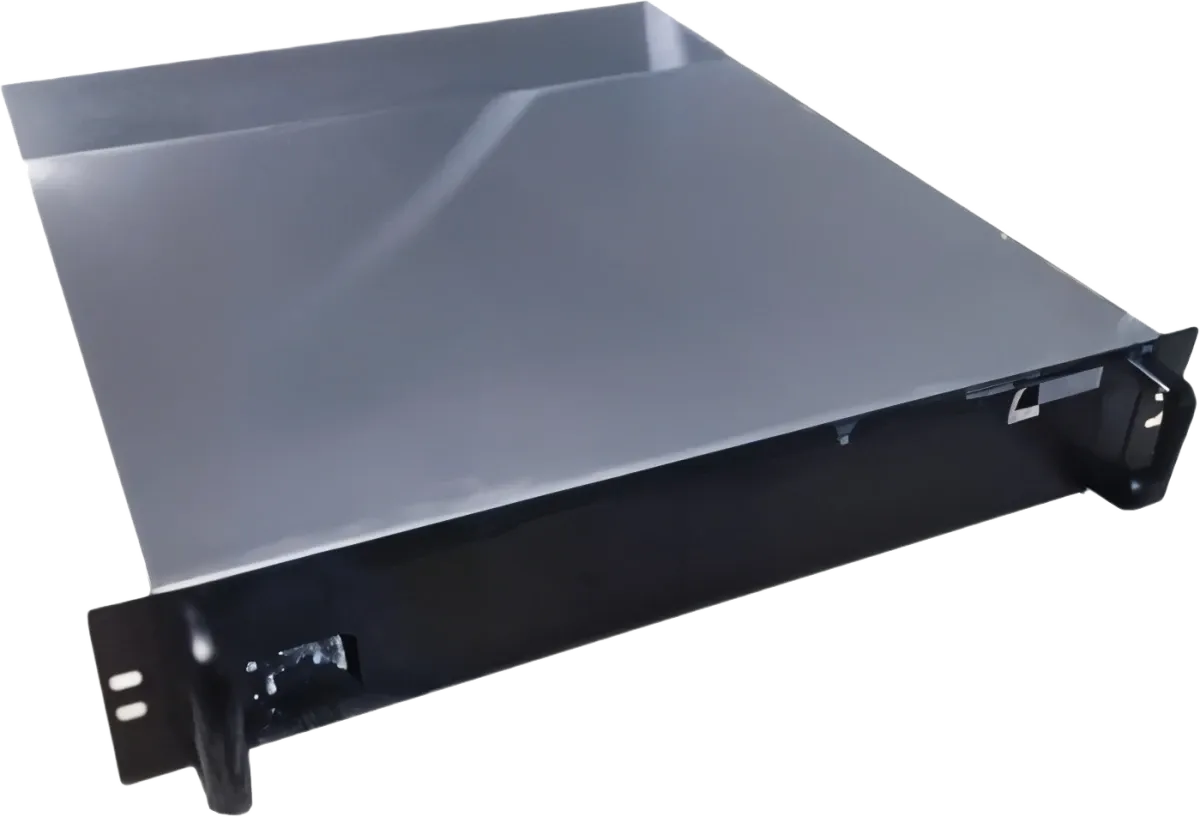

The Canaan Avalon A1566HA 2U is an enterprise-grade hydro-cooled ASIC miner engineered for SHA-256 / Bitcoin mining at professional scale. Delivering high hashrate performance at 8,064W with ultra-quiet 40 dB operation in a compact 2U rack form factor, it is purpose-built for high-density hydro-cooled data center deployments requiring Canaan’s latest generation mining technology.

Technical Specifications

• Manufacturer: Canaan
• Model: Avalon A1566HA 2U
• Also Known As: Avalon 1566 HA 2U
• Algorithm: SHA-256
• Target Coin: BTC (Bitcoin)
• Power Consumption: 8,064W
• Cooling: Hydro cooling (OD 14)
• Form Factor: 2U rack
• Voltage: 323–528V, 20A
• Dimensions: 680 × 560 × 200 mm
• Weight: 20,000g
• Noise Level: 40 dB
• Interface: Ethernet
• Operating Temperature: 10–50°C
• Humidity: 10–90%
• Release: June 2025

Why Choose the Avalon A1566HA 2U

• Ultra-quiet 40 dB hydro cooling — among the quietest enterprise ASIC miners available
• Wide voltage range (323–528V) for compatibility with global data center power infrastructure
• Compact 2U rack form factor for high-density hydro-cooled deployments
• Wide operating temperature range (10–50°C) for flexible site conditions
