Bitmain ANTSPACE HK3 V6.
Bitmain ANTSPACE HK3 V6.
Regular price
$66,999.00 USD
Regular price
$71,000.00 USD
Sale price
$66,999.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Free shipping worldwide.
- PSU and cables included
- 30-day returns & buyer protection.

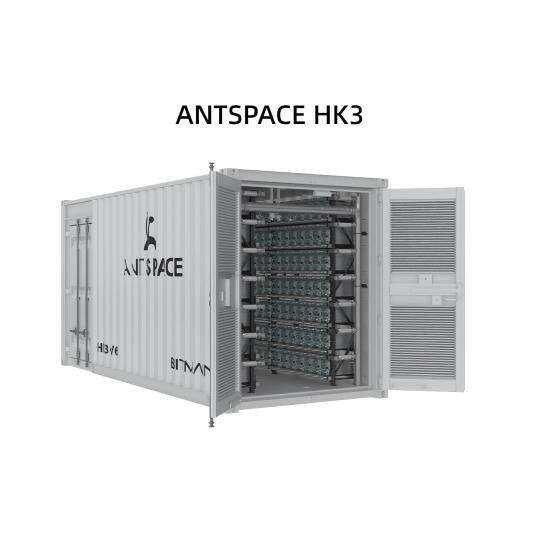

Specification Details For ANTSPACE HK3 V6
| Product Overview | Β |
| Model | ANTSPACE HK3 V6 |
| Dimensions (L*W*H) (mm) | 6058*2438*2896 |
| Miner Capacity | 210 units -S19 Hyd. & S21 Hyd. Series miner |
| Container Certification | China Classification Society Certification |
| Safety Certification |
NFPA 79:2021 |
| Operating Power(kW) | 1047~1050 |
| PUE(Power Usage Effectiveness) | 1.022(Excluding cooling tower)/1.032(Including cooling tower) |
| Input Voltage and Frequency |
400VΒ±5% 50/60Hz |
| Detailed Characteristics | Β |
| Shipping Weight(T) | 8 |
| Operating Weight (T) | 12 |
| Main Switch of Power Distribution Cabinets(A) | 1200*2 |
| Rated Current(A) | A:952; B:866 |
| Rated Current per Miner(A) | 10 |
| Inlet Cable | The inlet cables can withstand high-voltage of above 600V, with the following requirements: L1 single core cable 600kcMil(300mmΒ²)x4 L2 single core cable 600kcMil(300mmΒ²)x4 L3 single core cable 600kcMil(300mmΒ²)x4 N Single-core cable 600kcMil(300mmΒ²)x4 PE single-core cable 500kcMil(240mmΒ²)x2 |
| Connection Interface(Cooling Tower) | DN100οΌISO2852 PN16οΌ |
| Connection Interface(Plate Heat Exchage Interface) | DN100(GB/T 9122-2010 PN16 DN100) |
| Flow Rate(mΒ³/h) | οΌ85 |
| Quantity of ANTSPACE powered by one 2500kVA Transformer | 2 |

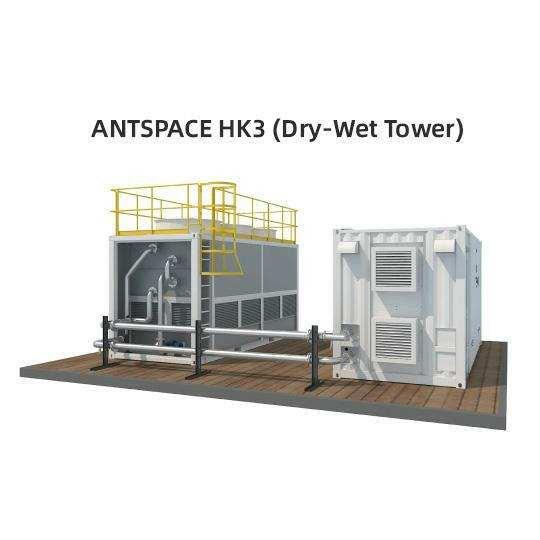

Specification Details For Dry-Wet Tower
| Product Overview | Β |
| Type | Dry-Wet Tower Container TypeΒ |
| Dimensions(L*W*H)(mm) | 6058*2438*2896 |
| Heat Dissipation Capacity(kW) | 1000 |
| Outlet Temperature @ 28β Wet Bulb Temperature | 35β |
| Container Certification | China Classification Society Certification |
| Safety Certification |
NFPA 79:2021 |
| Operating Power(kW) | 14~28 |
| Motor Rated Voltage and Frequency |
400VΒ±5% 50/60Hz |
| Detailed Characteristics | Β |
| Shipping Weight(T) | 7 |
| Operating WeightοΌTοΌ | 13 |
| Connection Interface | DN125(ISO2852 PN16) |
| Water Resupply Pipe Interface | DN40(Internal thread) |
| Drain Pipe Interface | DN65(Internal thread) |
| Noise Level @25β, 15m | 70dBA |
| Water Consumption(mΒ³/h) | 0.7~1.3mΒ³/h |
Β

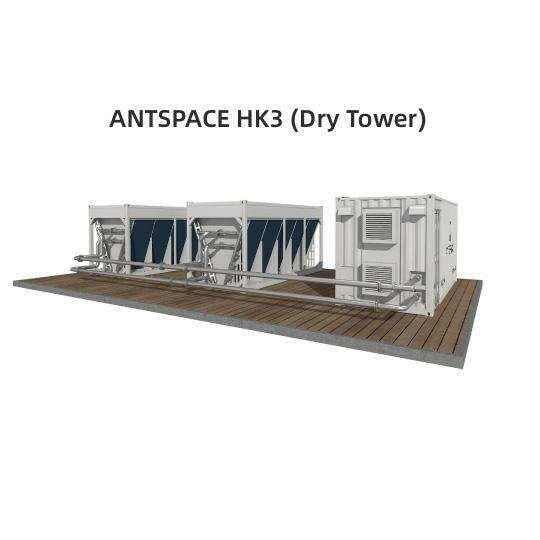

Specification Details For Dry Tower
| Product Overview | Β |
| Type | Dry Tower Container Type |
| Number | 2 |
| Dimensions(L*W*H)(mm) | 6058*2438*2896 |
| Outlet Temperature @ 30β ambient temperature | 35β (Outlet temp 5β above ambient temp) |
| Container Certification | China Classification Society Certification |
| Operating Power(kW) |
20~32 |
| Motor Rated Voltage and Frequency | 400VΒ±5% 50/60Hz |
| Detailed Characteristics | Β |
| Shipping Weight(T) | 6 |
| Operating WeightοΌTοΌ | 8 |
| Connection Interface | DN100(ISO2852 PN16) |
| Water Resupply Pipe Interface | DN10οΌTapered tubeοΌ |
| Noise Level @25β, 15m | 70dBA |
| Pipe materials | 304 stainless steel |

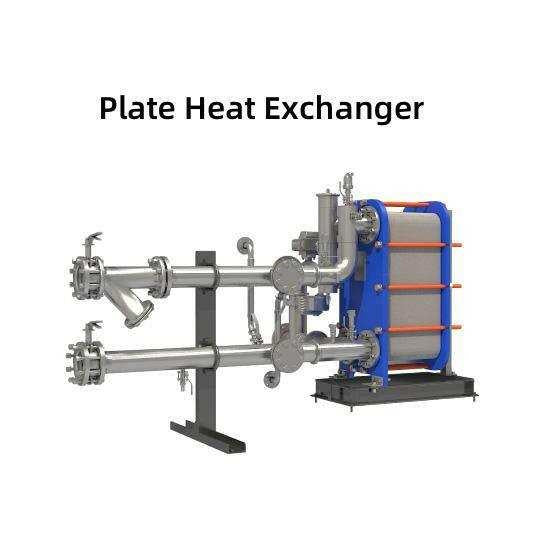

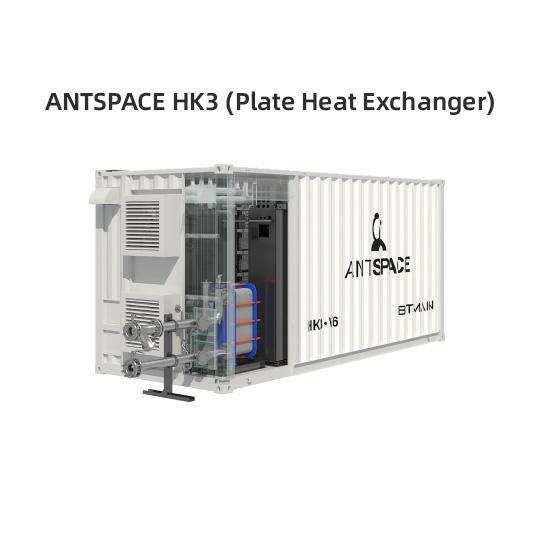

Specification Details For Plate Heat Exchanger
| Product Overview | Β |
| Type | Plate Heat ExchangerΒ |
| Dimensions(L*W*H)(mm) | 775*480*1069 |
| Material | TI |
| Detailed Characteristics | Β |
| Shipping Weight(KG) | 379 |
| Operating WeightοΌKGοΌ | 461 |
| Connection Interface | DN100(GB/T 9122-2010 PN16 DN100) |
| External circulation supply liquid temperature (β) | 0~30 |
| External circulation flow rate (mΒ³/h) | 33~110 |
| Internal circulation flow rate (mΒ³/h) | 100 |
Β
| Points For Attention
| 1 | The cooling tower must be placed on a flat ground with a level of Β±1 degree. |
| 2 | The surface ground needs to be hardened and aimed to hold the ANTSPACE to be stable to withstand the load of at least 25 tons.Β |
| 3 | The customers need to prepare a 20-ton crane to load and unload ANTSPACE and Cooling-tower. |
| 4 | Stairs, walkway boards, transformers, cables, bridges, cable distribution boxes, and other external facilities are included in ANTSPACE products. |
| 5 | If you plan to store ANTSPACE units vertically on top of one another, please advise the MINERS MARKET team regarding the preferred opening direction for the door facing the air inlet of your ANTSAPCE unit. The door opens to the left by default. |
| 6 |
Leave at least 2 meters of air inlet space around the cooling tower. |
| 7 | Operating elevation: lower than 2000 meters. If the height is more significant than 1000 meters and a 2500kVA transformer, the number of ANTSAPCE units installed in one ANTSPACE unit must be decreased by around 1%. |
| 8 | Environmental requirements:Β Temperature: -25Β°C~40Β°C; Humidity 10%RH~90%RH;Β The ambient temperature requirement in high-humidity areas is not higher than 40Β°C. When the ambient temperature is lower than 0Β°C, the inlet and outlet shutters need to be closed, and the interior of the mining machine can only be started when it is heated to above 20Β°C. |
| 9 | The ambient temperature of the ANTSPACE does not represent the ambient temperature of the mining machine. |
