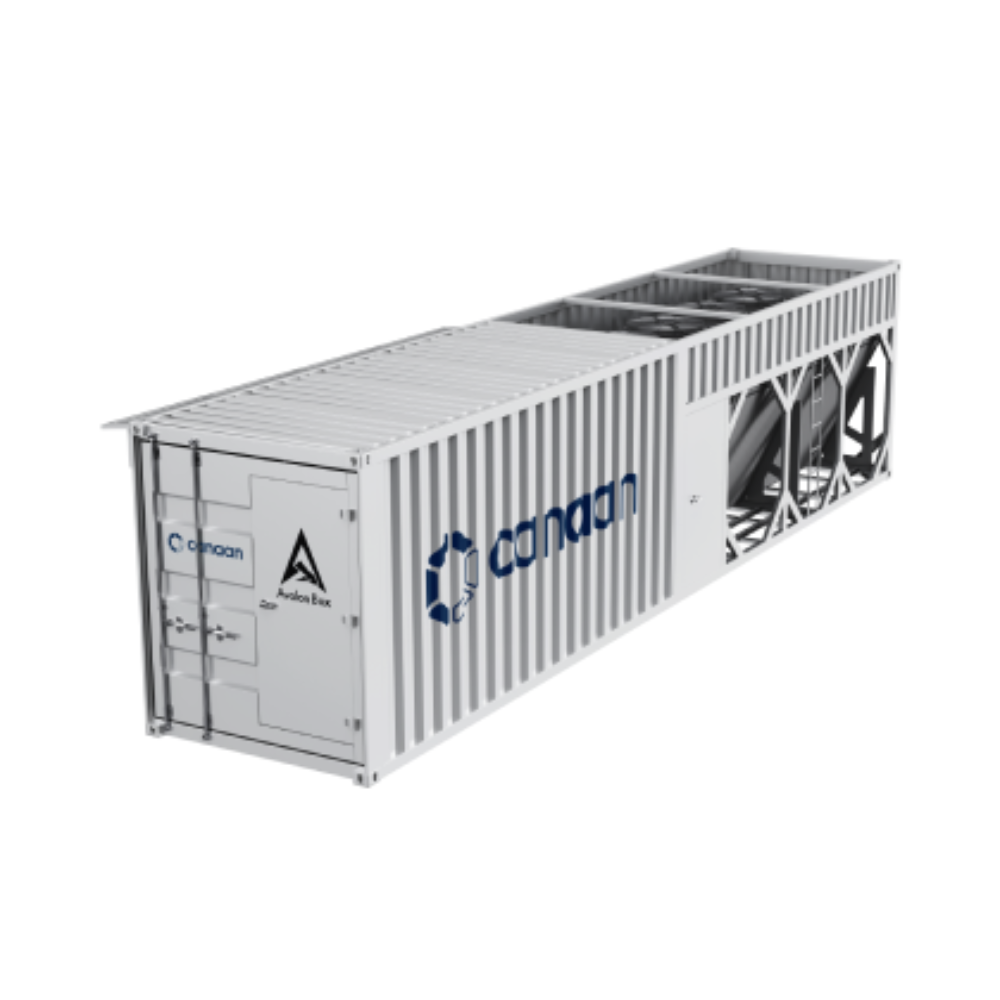

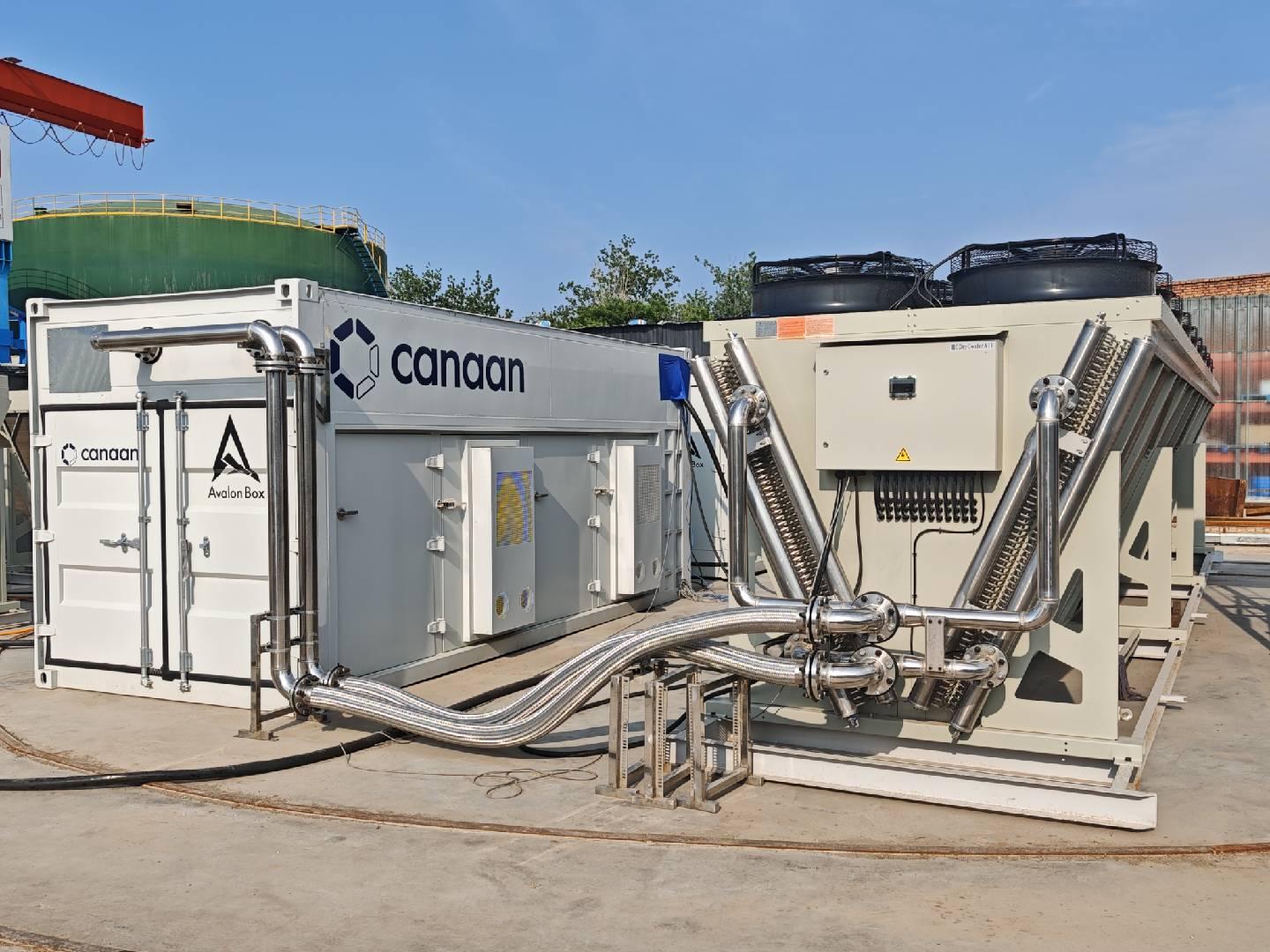

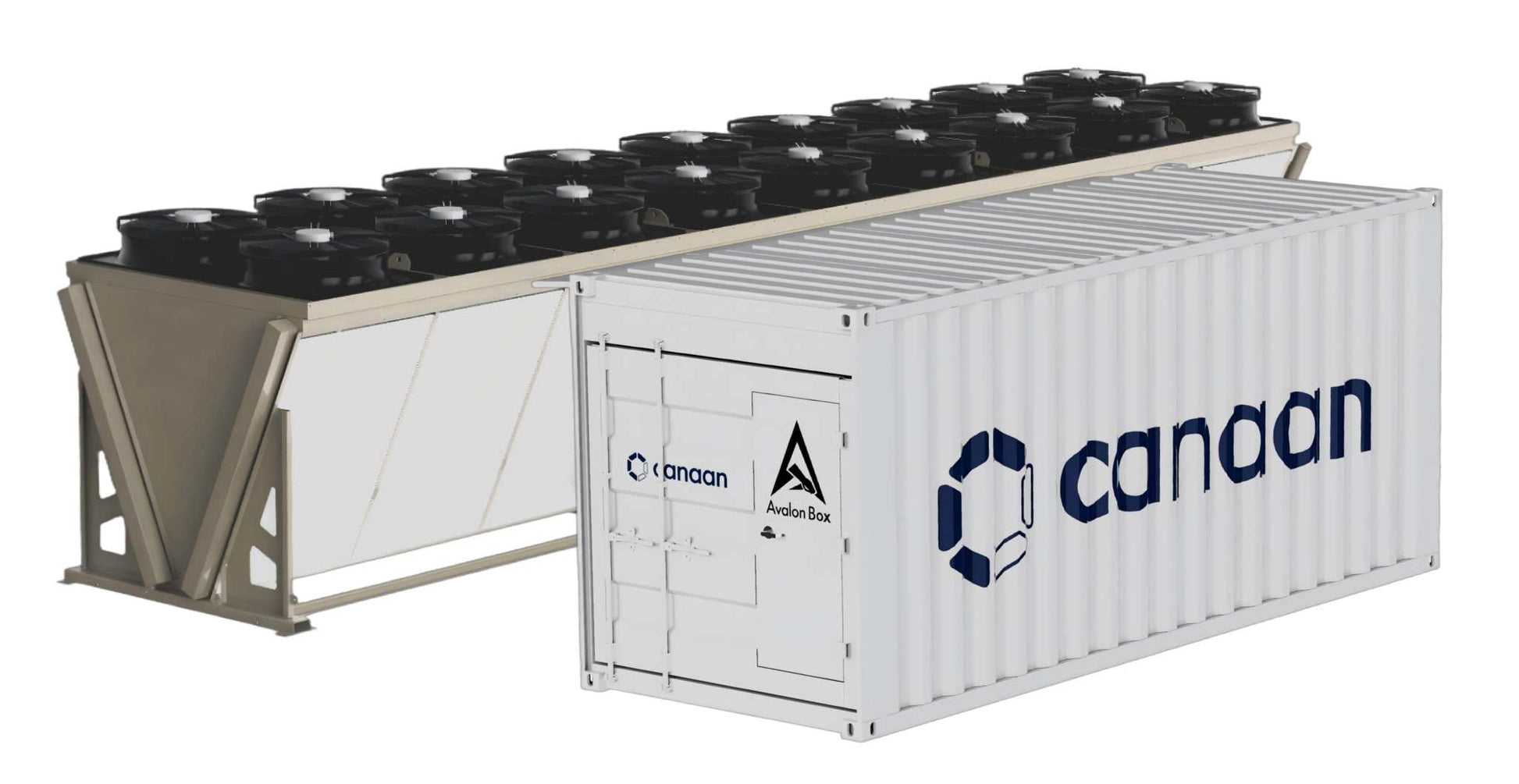

Canaan Avalon Hydro Cooling Mining Box – 20ft / 40ft

The Canaan Avalon Hydro Cooling Mining Box is an enterprise-grade hydro-cooled mining container engineered for large-scale Avalon miner deployments. Supporting 100 units of Avalon miners at 1,200 kW power capacity with a PUE of ≤1.04, it delivers a complete, classification society-certified containerized hydro infrastructure solution — available in both 20ft and 40ft configurations.

Container Specifications

• Model: Avalon Hydro Cooling Mining Box
• Available Sizes: 20ft (5,950 × 2,255 × 2,555 mm) | 40ft (12,192 × 2,438 × 2,896 mm)
• Cooling Method: Hydro cooling
• Miner Capacity: 100 units (Avalon miners)
• Power Capacity: 1,200 kW @ 25°C
• Max Power per Position: 10.0 kW
• PUE: ≤1.04
• Input Voltage: 380V–415V AC, 50Hz
• Power Distribution Cabinet: 2,500A
• PDU: 400A, 20A × 20 sets
• Cabinet Configuration: 20 units per cabinet
• Cooling Unit: 1,000 kW @ 25°C
• Coolant Pump: Customized pumps
• Control System: PLC monitoring, start/stop, alarming
• Water Treatment: Monitoring, dosing, alarming
• Sensors: Integrated smoke sensor, temperature sensor, ventilator
• Networking: Aggregation and terminal switches
• Noise Level: ≤70 dBA
• Pipe Material: SS304 stainless steel
• Container Certification: Classification Society
• Shipping Weight: ≤20T | Operating Weight: ≤25T

Why Choose the Avalon Hydro Cooling Mining Box

• 100-unit Avalon miner capacity with PUE ≤1.04 — exceptional energy efficiency
• Available in 20ft and 40ft configurations for flexible site deployment
• Complete turnkey hydro infrastructure — power, cooling, monitoring, and water treatment included
• Classification society certified for international shipping and institutional procurement
