ANTSPACE MD5

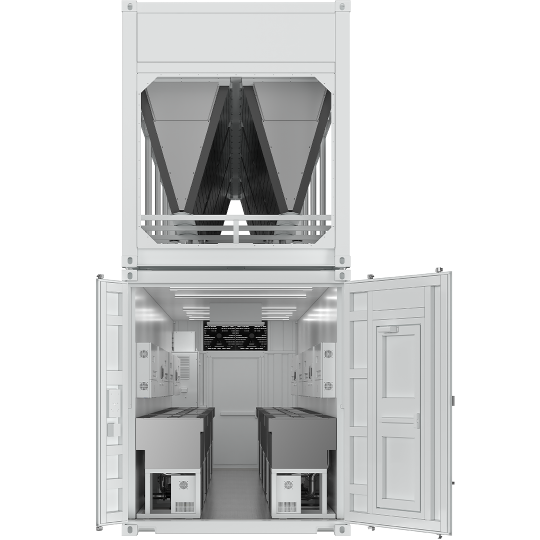

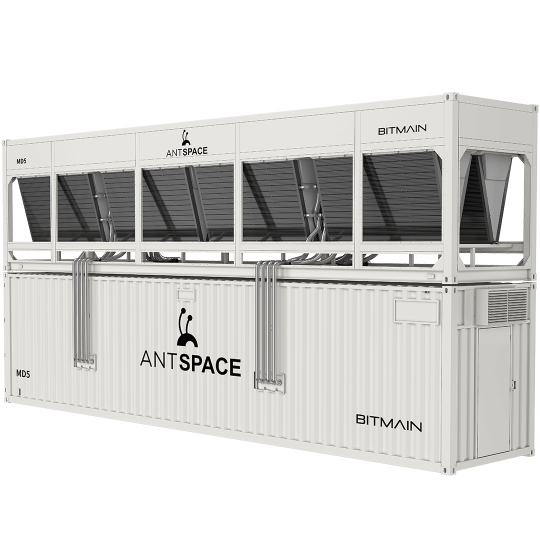

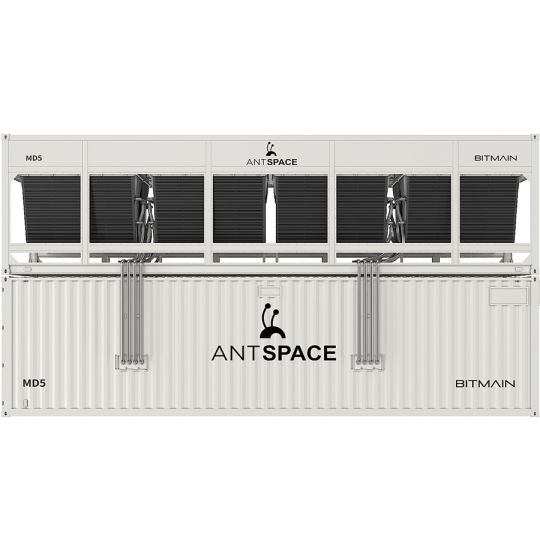

Bitmain ANTSPACE MD5 – Immersion Cooling Mining Container

The Bitmain ANTSPACE MD5 is an enterprise-grade oil immersion cooling mining container engineered for the highest-density Bitcoin mining deployments. Supporting 160 units of S21 Immersion and S21 XP Immersion miners at 1,000 kW operating power with a PUE of just 1.06, it delivers a complete, CCS-certified containerized immersion infrastructure solution for institutional and industrial mining operations.

Container Specifications

• Model: ANTSPACE MD5
• Dimensions: 12,192 × 2,438 × 2,896 mm (40ft)
• Miner Capacity: 160 units — S21 Imm. & S21 XP Imm. series
• Operating Power: 1,000 kW
• PUE @ 25°C: 1.06
• Input Voltage: 400V ±5%, 50/60Hz
• Main Switch: 1,200A × 2
• Rated Current: A: 952A | B: 866A
• Rated Current per Miner: 20A
• Cooling Interface: DN65 (ISO2852 PN16)
• Pipe Material: SS304 stainless steel
• Container Certification: China Classification Society (CCS)
• Safety Certifications: NFPA 79:2024, UL 508A:2018, CSA C22.2 No.301:23, ANSI/ISO 12100:2012, EN ISO 12100:2010, EN 60204-1:2018
• Shipping Weight: 12T | Operating Weight: 18.5T

Dry Tower Specifications

• Dimensions: 12,192 × 2,438 × 2,896 mm
• Operating Power: 100 kW
• Motor Voltage: 400V ±5%, 50/60Hz
• Outlet Temperature @ 30°C ambient: 35°C
• Noise Level @ 25°C, 15m: 70 dBA
• Cooling Interface: DN65 (ISO2852 PN16)
• Pipe Material: SS304 stainless steel
• Shipping Weight: 11.8T | Operating Weight: 12.8T
• Container Certification: CCS

Why Choose the ANTSPACE MD5

• 160-unit immersion capacity — maximum hashrate density in a single 40ft container
• 1,000 kW at PUE 1.06 — industry-leading energy efficiency for immersion deployments
• Multi-standard safety certified for global compliance and institutional procurement
• Complete turnkey immersion infrastructure with integrated dry tower cooling
