ANTSPACE HW5

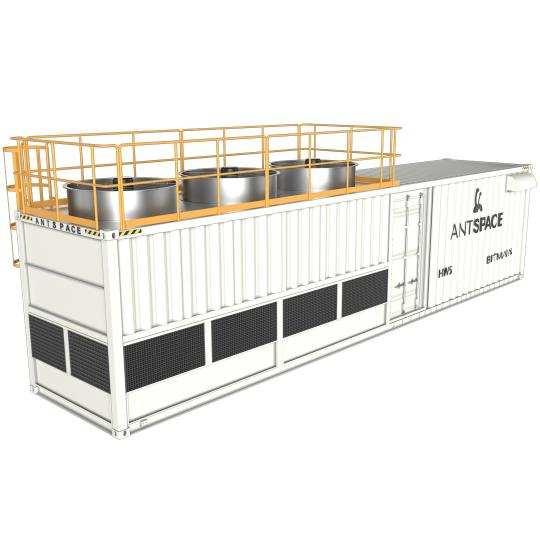

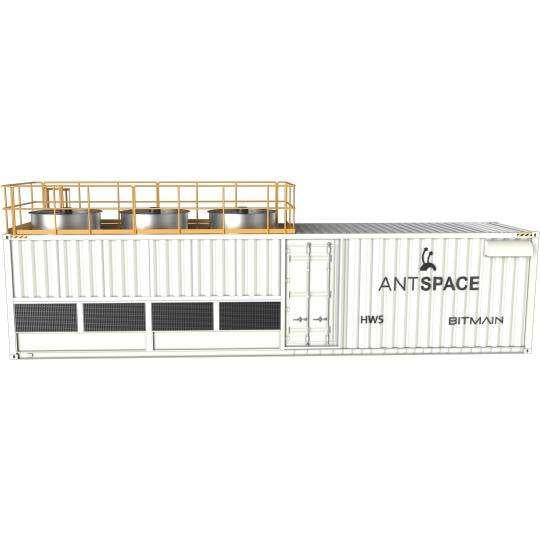

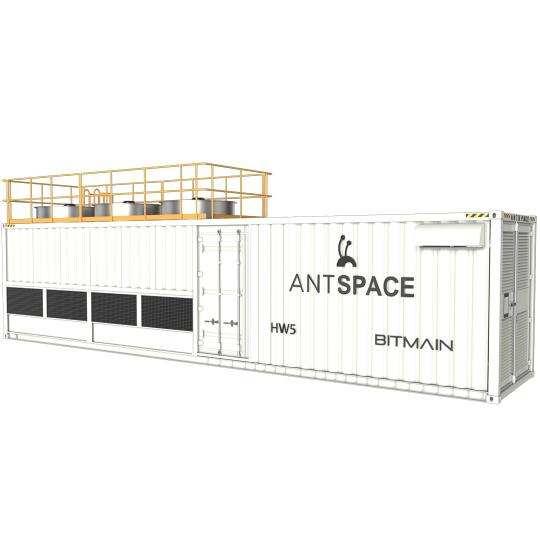

Bitmain ANTSPACE HW5 – Hydro Cooling Mining Container

The Bitmain ANTSPACE HW5 is an enterprise-grade hydro cooling mining container engineered for large-scale Bitcoin mining deployments. Supporting 210 units of S19 Hyd. and S21 Hyd. series miners at 1,062 kW operating power with a PUE of 1.032, it delivers a complete, CCS-certified containerized hydro infrastructure solution for institutional and industrial mining operations.

Container Specifications

• Model: ANTSPACE HW5 V1
• Dimensions: 12,192 × 2,438 × 2,896 mm (40ft)
• Miner Capacity: 210 units — S19 Hyd. & S21 Hyd. series
• Operating Power: 1,062 kW
• PUE: 1.032
• Input Voltage: 400V ±5%, 50/60Hz
• Main Switch: 1,200A × 2
• Rated Current: ≤986A
• Rated Current per Miner: ≤10A
• Flow Rate: ≥85 m³/h
• Container Certification: China Classification Society (CCS)
• Safety Certifications: NFPA 79:2021, UL 508A:2018, CSA C22.2 No.14-18, ANSI/ISO 12100:2012, IEC 60204 Ed 5.1 2009
• Shipping Weight: 14T | Operating Weight: 24T
• Transformers per 2,500 kVA: 2 ANTSPACE units

Dry-Wet Tower Specifications

• Heat Dissipation Capacity: 1,200 kW
• Outlet Temperature @ 28°C Wet Bulb: 35°C
• Operating Power: 15–29 kW
• Motor Voltage: 400V ±5%, 50/60Hz
• Noise Level @ 25°C, 15m: 70 dBA
• Water Consumption: 0.7–1.3 m³/h
• Container Certification: CCS

Why Choose the ANTSPACE HW5

• 210-unit hydro capacity at PUE 1.032 — efficient large-scale hydro mining infrastructure
• Compatible with S19 Hyd. and S21 Hyd. series miners including the Antminer S23e Hyd 2U
• Multi-standard safety certified for global compliance and institutional procurement
• Complete turnkey hydro infrastructure with integrated dry-wet tower cooling
