ANTSPACE HD5

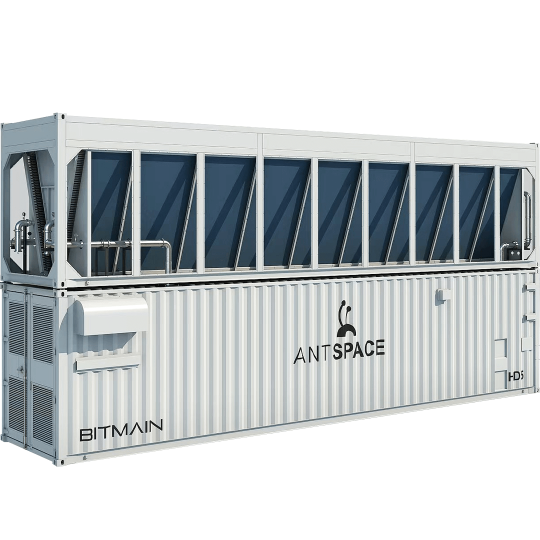

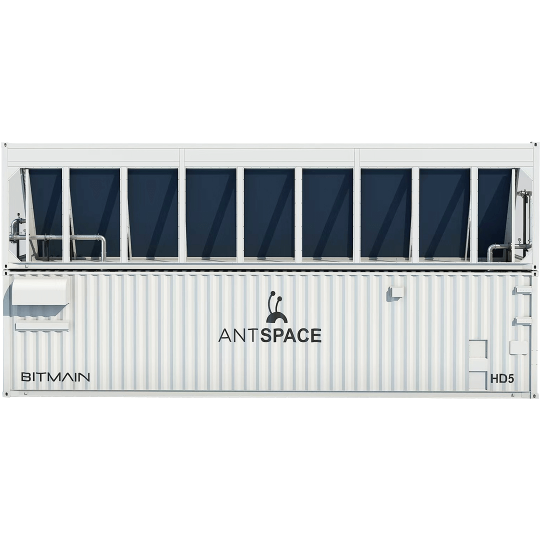

Bitmain ANTSPACE HD5 – Hydro Cooling Mining Container

The Bitmain ANTSPACE HD5 is an enterprise-grade hydro cooling mining container engineered for the highest-density Bitcoin mining deployments. Supporting 308 units of S19 Hyd. and S21 Hyd. series miners at 1,512 kW normal power (up to 1,765 kW maximum), it delivers a complete, CCS-certified containerized hydro infrastructure solution for institutional and industrial mining operations.

Container Specifications

• Model: ANTSPACE HD5
• Dimensions: 12,196 × 2,438 × 2,896 mm (40ft)
• Miner Capacity: 308 units — S19 Hyd. & S21 Hyd. series
• Normal Power: 1,512 kW | Maximum Power: 1,765 kW
• Input Voltage: 400V ±5%, 50/60Hz
• Main Switch: 1,200A × 4
• Rated Current: 700A × 4
• Rated Current per Miner: 10A
• Flow Rate: 67.2–73.9 m³/h
• Cooling Interface: DN100 (ISO2852 PN16)
• Container Certification: CCS
• Safety Certifications: NFPA 79:2021, UL 508A:2018, CSA C22.2 No.14-18, ANSI/ISO 12100:2012, IEC 60204 Ed 5.1 2009
• Shipping Weight: 11T | Operating Weight: 17.2T
• Transformers per 3,750 kVA: 2 ANTSPACE units

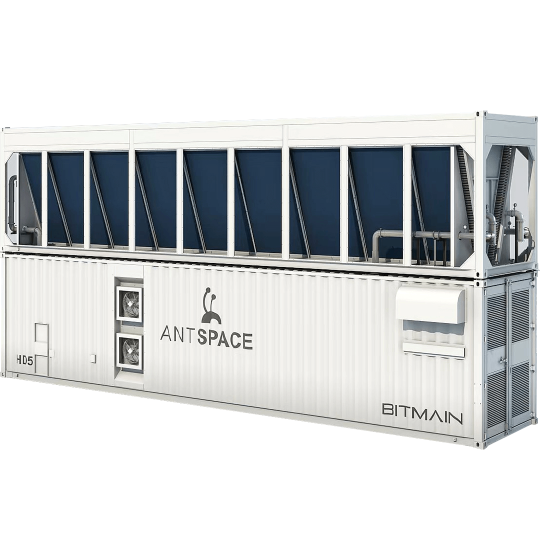

Dry Cooling Tower Specifications

• Model: EC2-DT Dry Cooler (Container Type)
• Dimensions: 12,192 × 2,438 × 2,896 mm
• Heat Dissipation Capacity: 1,500 kW
• Outlet Water Temperature @ 30°C ambient: 35°C ±1°C
• Operating Power: ≤80 kW
• Motor Voltage: 400V ±5%, 50/60Hz
• Noise Level @ 25°C, 15m: 75 dBA
• Coolant Usage: 2.1 m³
• Container Certification: CCS
• Shipping Weight: 12T | Operating Weight: 13.5T

Why Choose the ANTSPACE HD5

• 308-unit hydro capacity — the highest-density Bitmain hydro mining container available
• 1,512–1,765 kW power range for flexible large-scale deployment configurations
• Compatible with S23 Hyd 3U miners (308 units per container)
• Multi-standard safety certified for global compliance and institutional procurement
